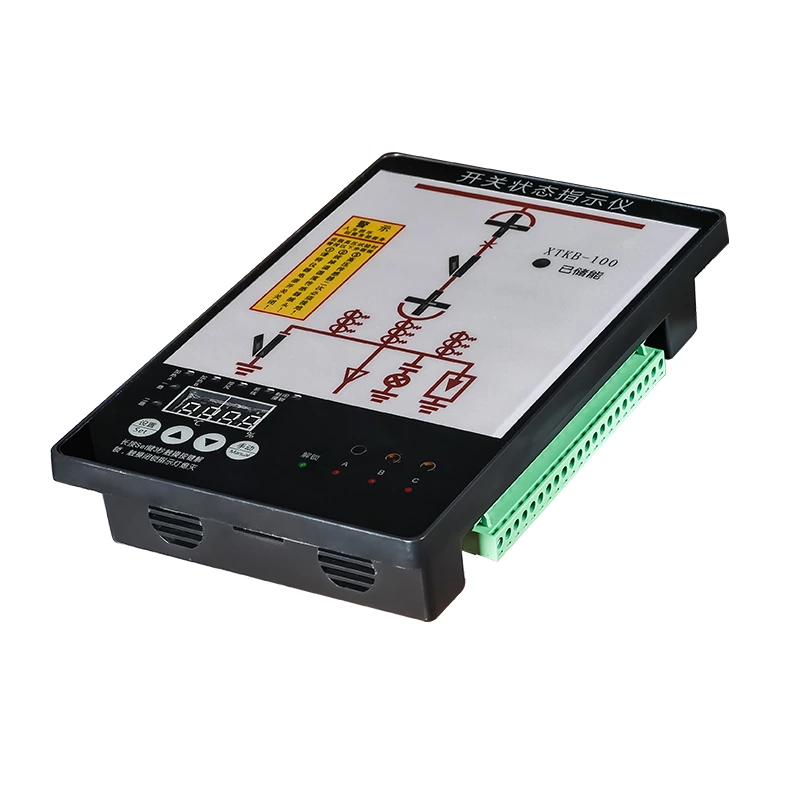

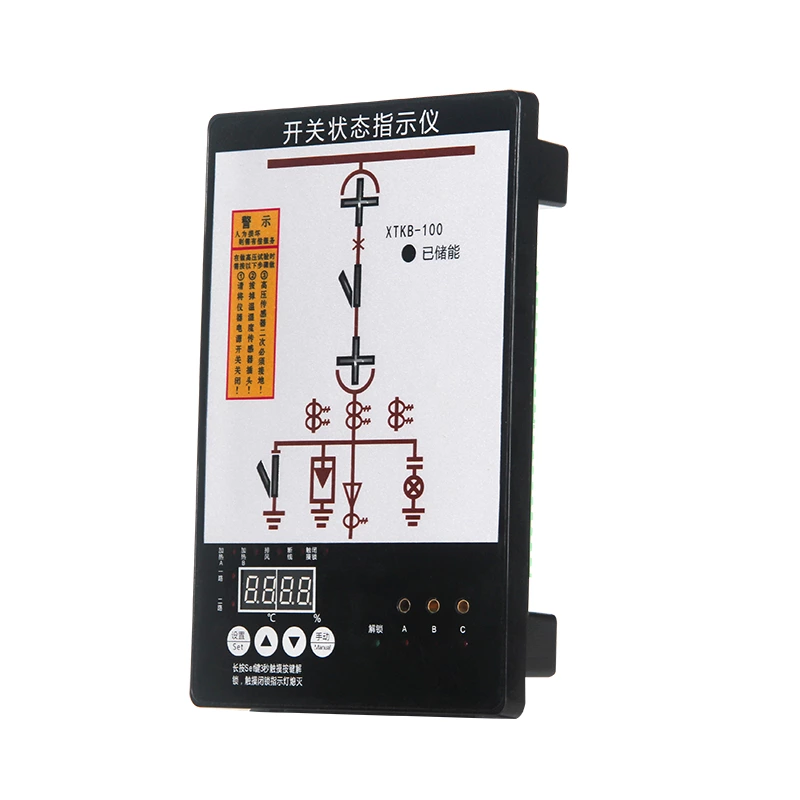

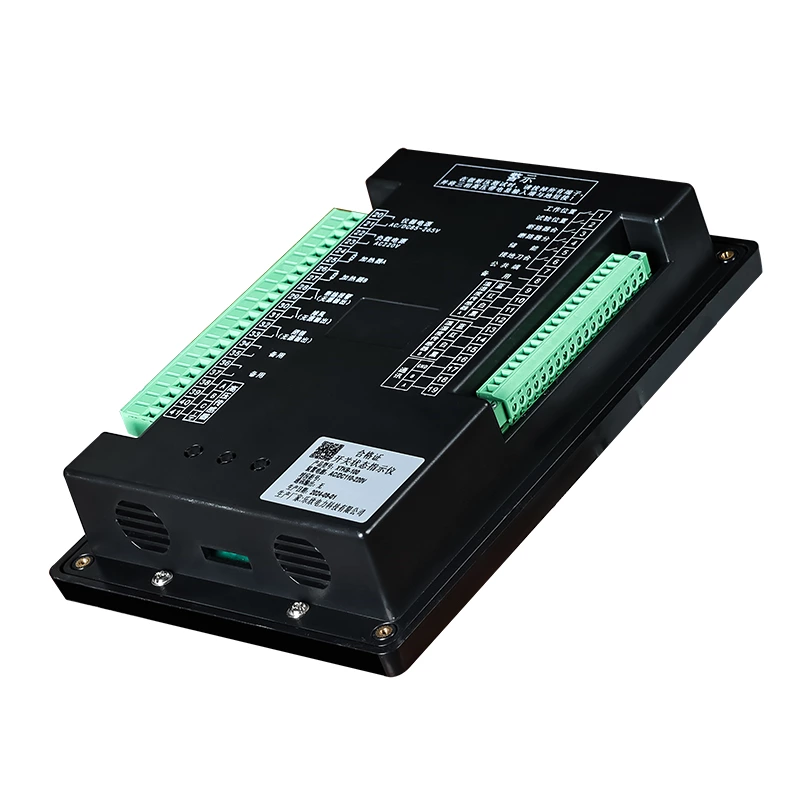

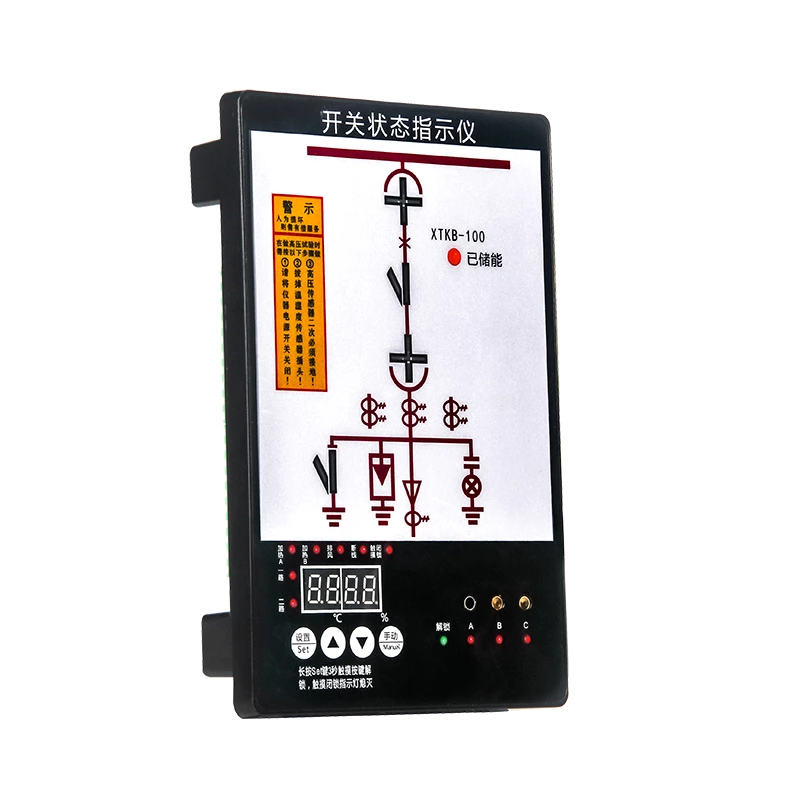

Custom switch status comprehensive indicator XTKB-100 digital display intelligent control device display simulator

         A new type of multifunctional and intelligent simulated dynamic indicator device developed based on the current technological development of medium voltage system switch cabinets. It is suitable for various types of switch cabinets such as indoor withdrawable switchgear, trolley switchgear, fixed switchgear, and ring main units ranging from 3 to 35KV. It features complete functions, compact structure, intuitive display, and reliable response. It can replace traditional primary circuit simulation signs, electromagnetic switch status displays, grounding indicators, and dehumidifying heating controllers installed on switch cabinets, significantly reducing the number of components, enhancing stability, and simplifying the structure of switch cabinets.

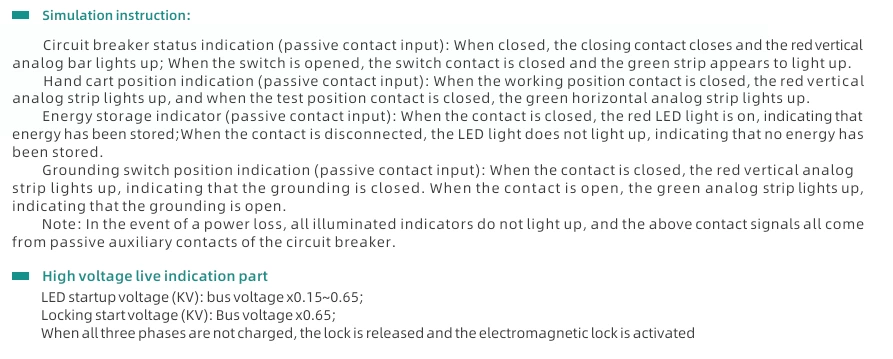

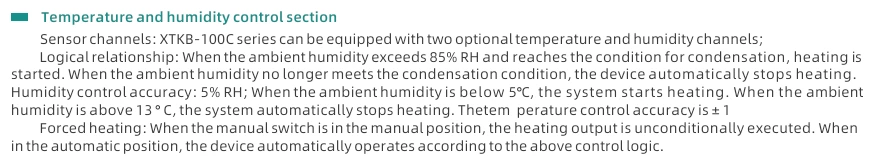

        It integrates multiple functions such as one-line circuit simulation display, circuit breaker position, trolley position or isolator position, grounding switch position, spring energy storage position, high-voltage live indication, high-voltage live interlock control, and automatic (manual) heating and dehumidification control into one unit. These indication functions can be combined or separated according to user needs. As long as different order models are specified and a primary scheme diagram is provided.
