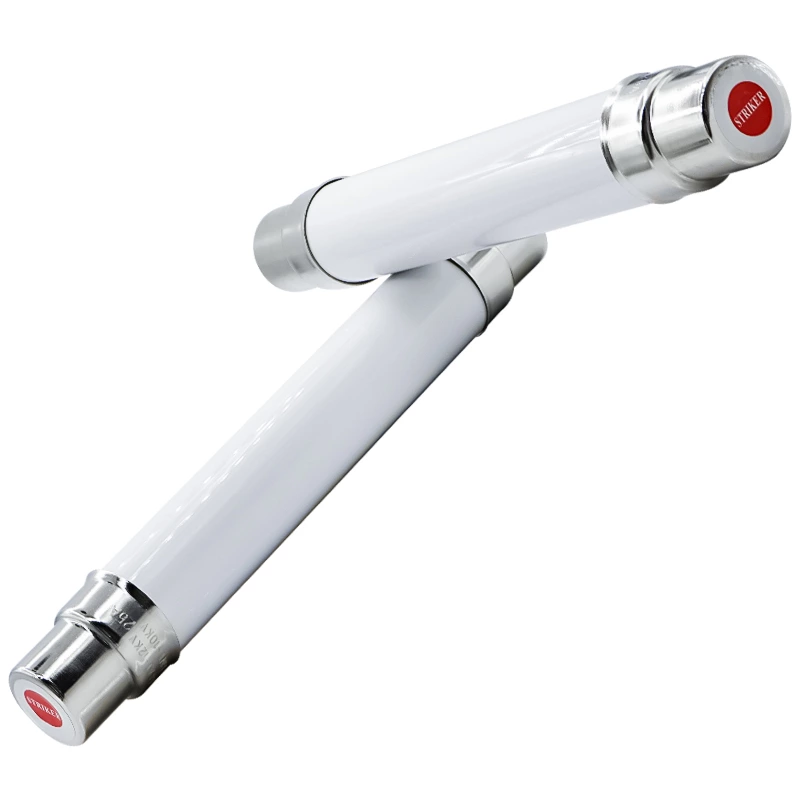

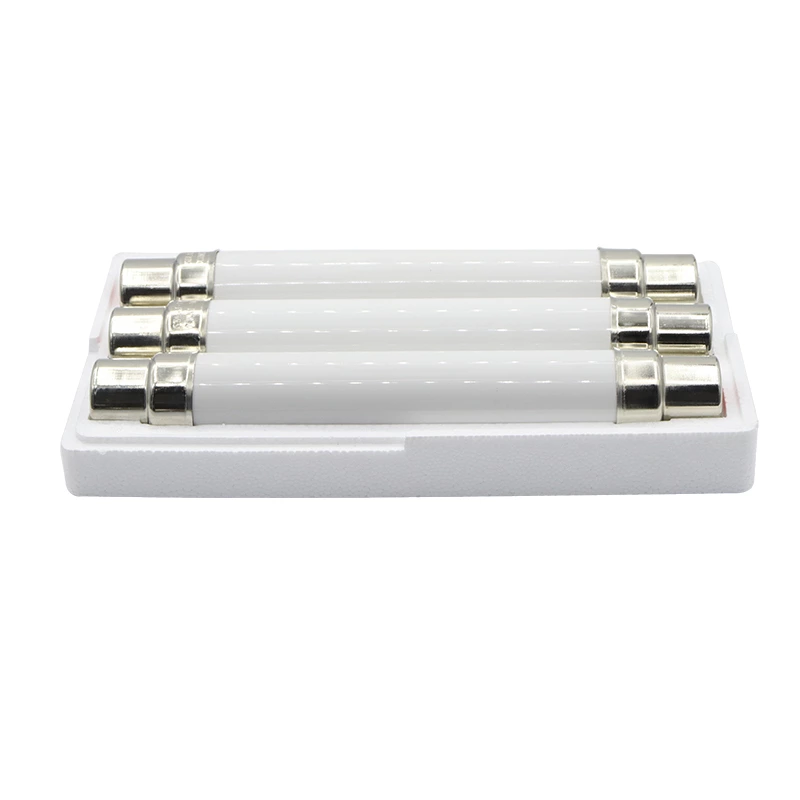

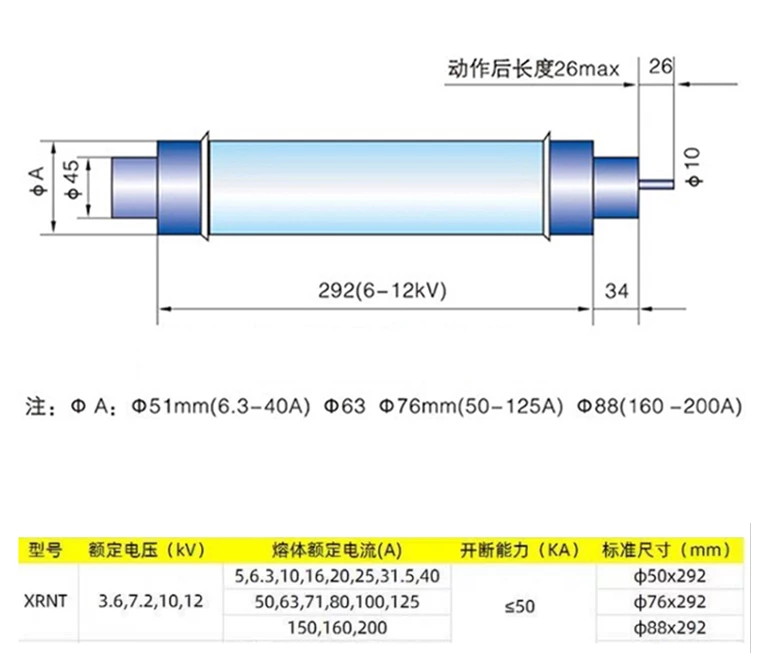

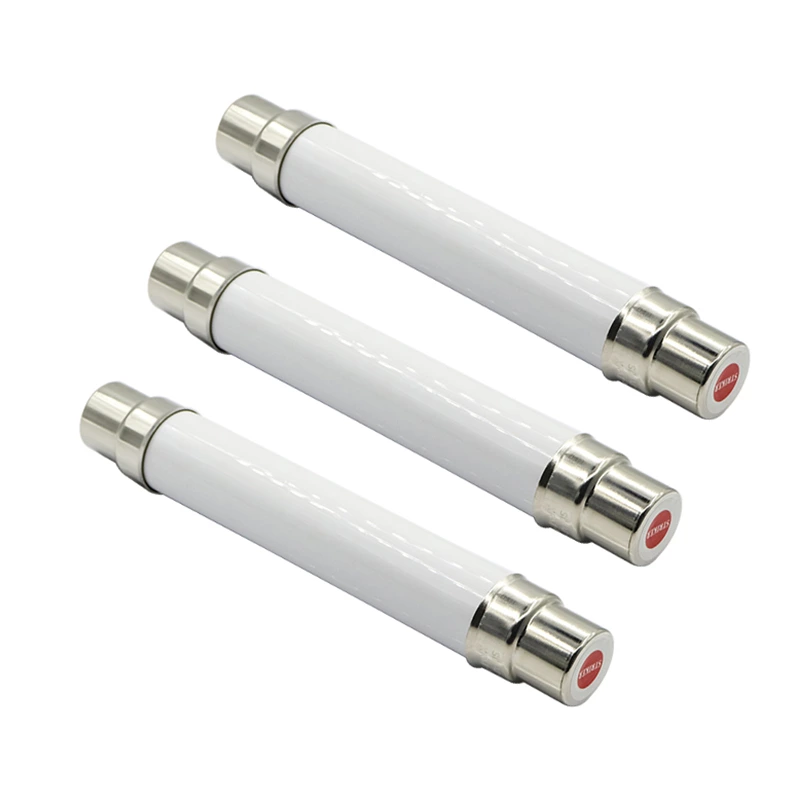

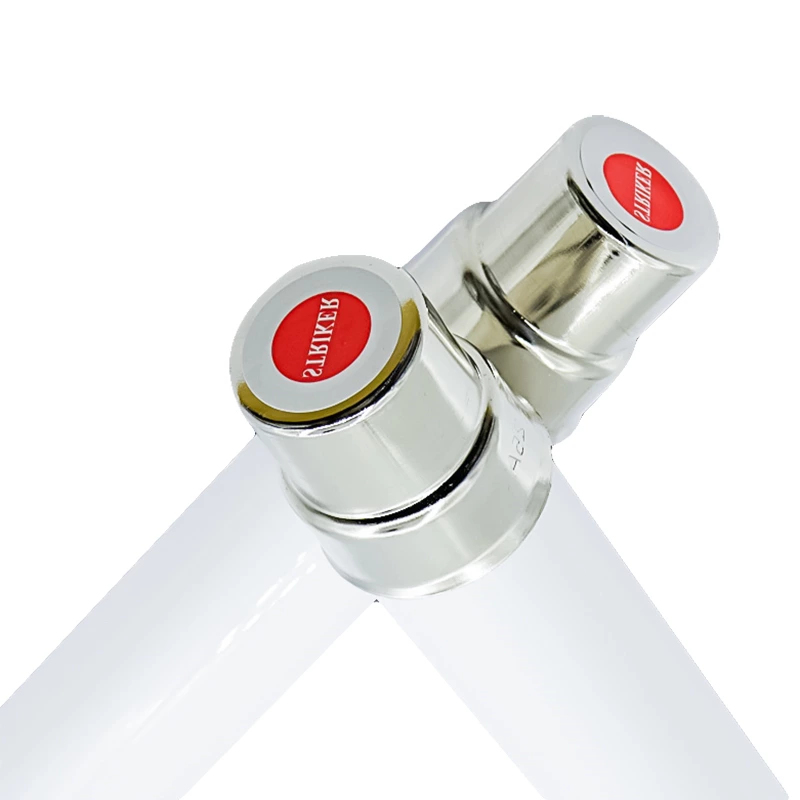

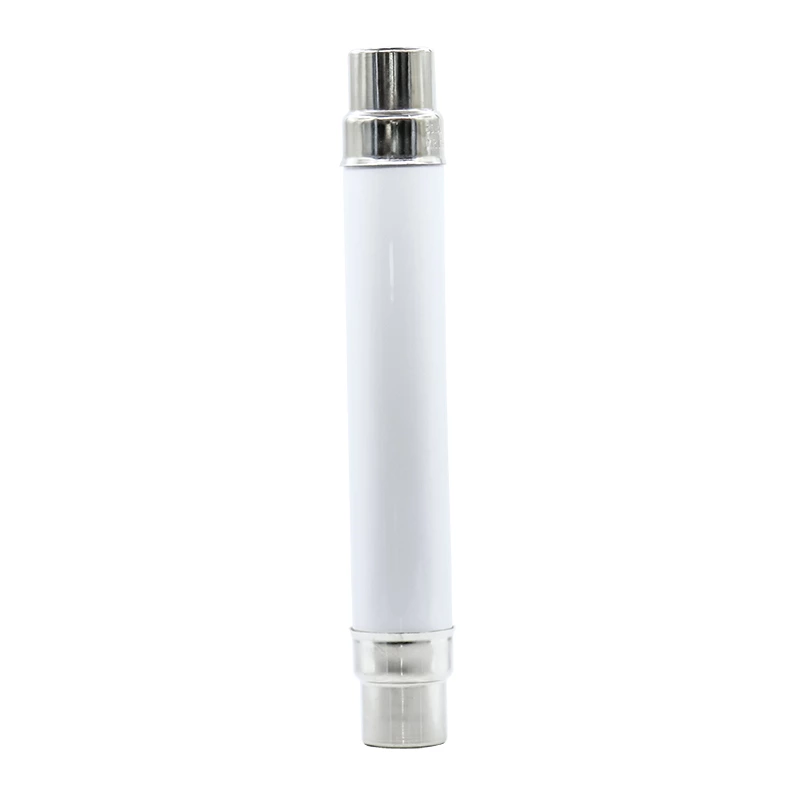

High-voltage current-limiting fuses XRNT for 10kV and 35kV with high breaking capacity

High-voltage current-limiting fuses are suitable for AC 50Hz systems with rated voltages of 3.6 to 12kV. They can also be used in conjunction with other electrical equipment, such as switches and contactors, to provide overload or short-circuit protection for electric motors, transformers, capacitors, and other power equipment.

A current-limiting fuse is a type of fuse that can safely interrupt all possible currents within its rated current and current-limiting range. It limits the melting time at the rated voltage to be equal to or less than the duration of the first main wave or symmetrical current wave, while also limiting the current to be less than the peak current.
