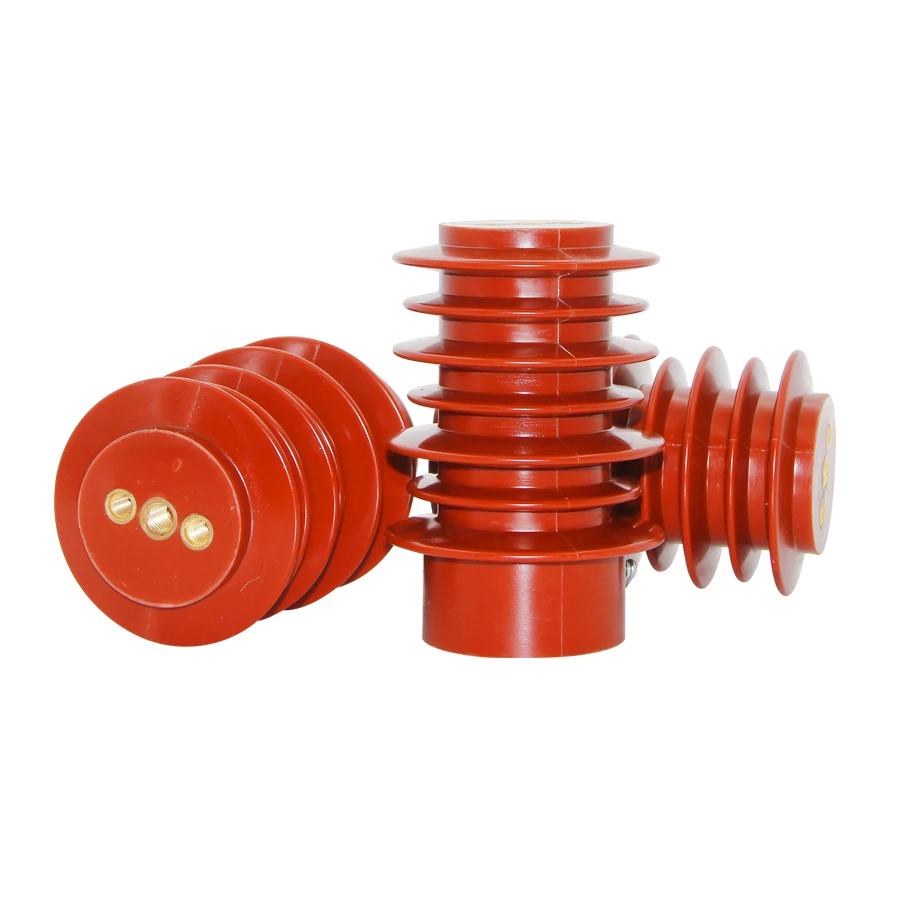

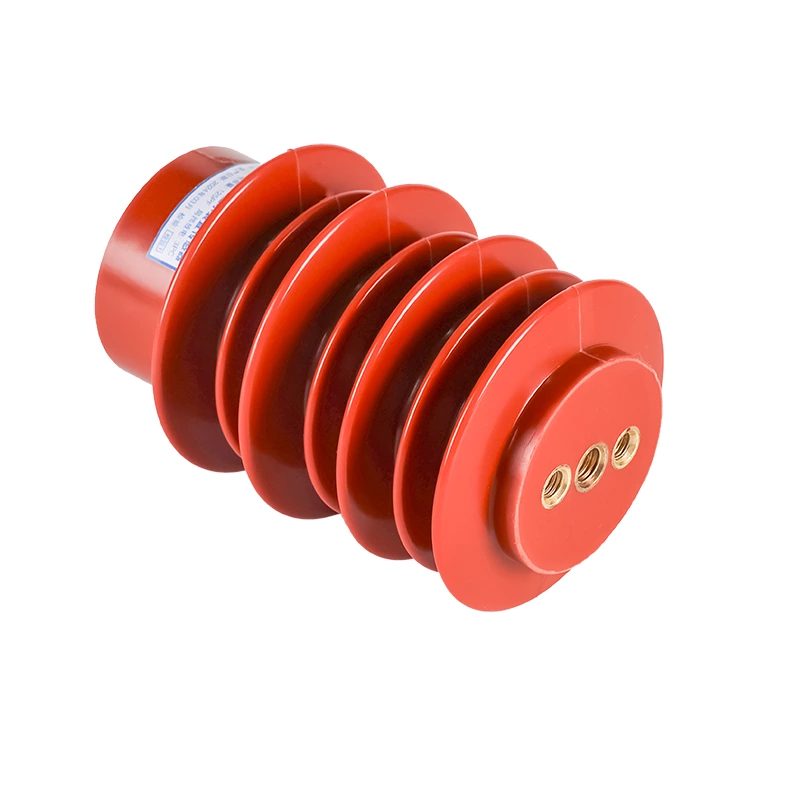

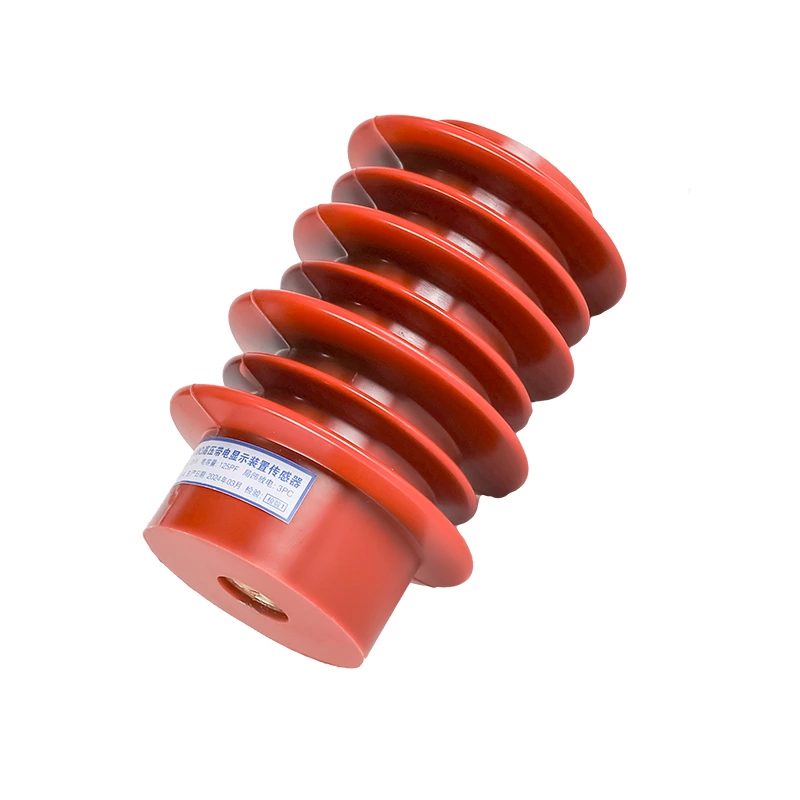

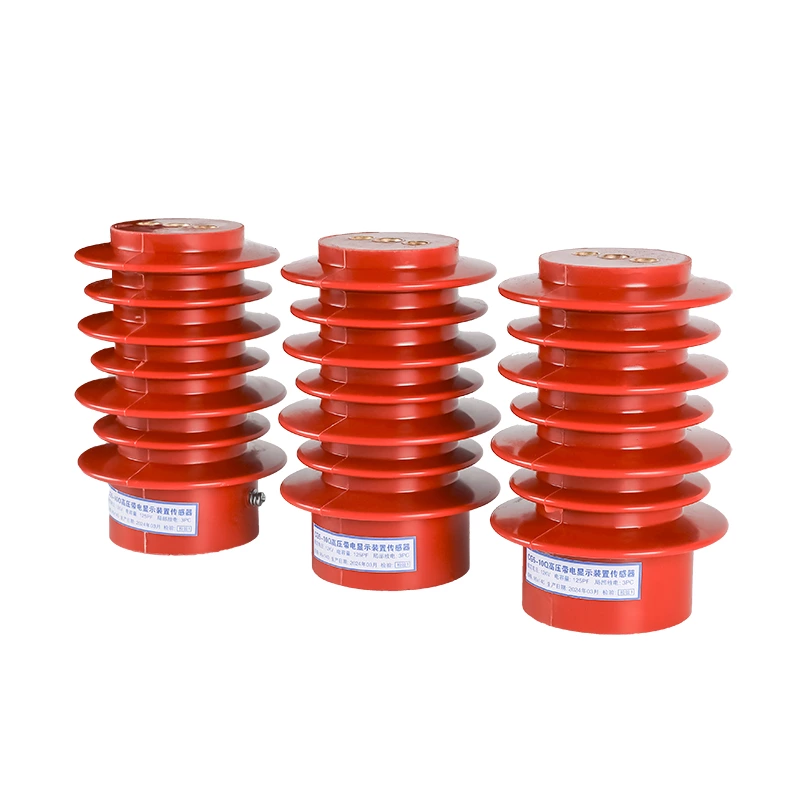

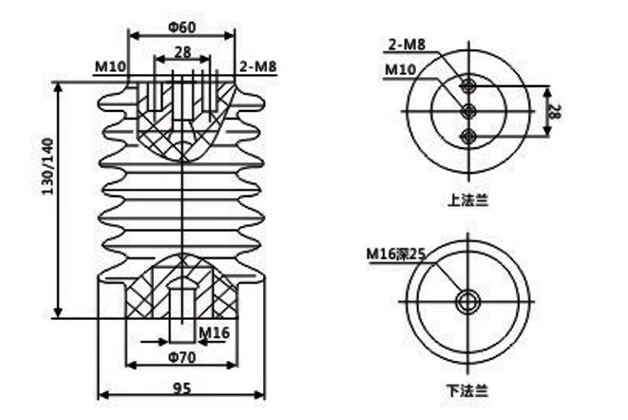

High-voltage sensor CG5-10Q95*140, indoor high-voltage live display sensor switchgear cabinet, 12KV

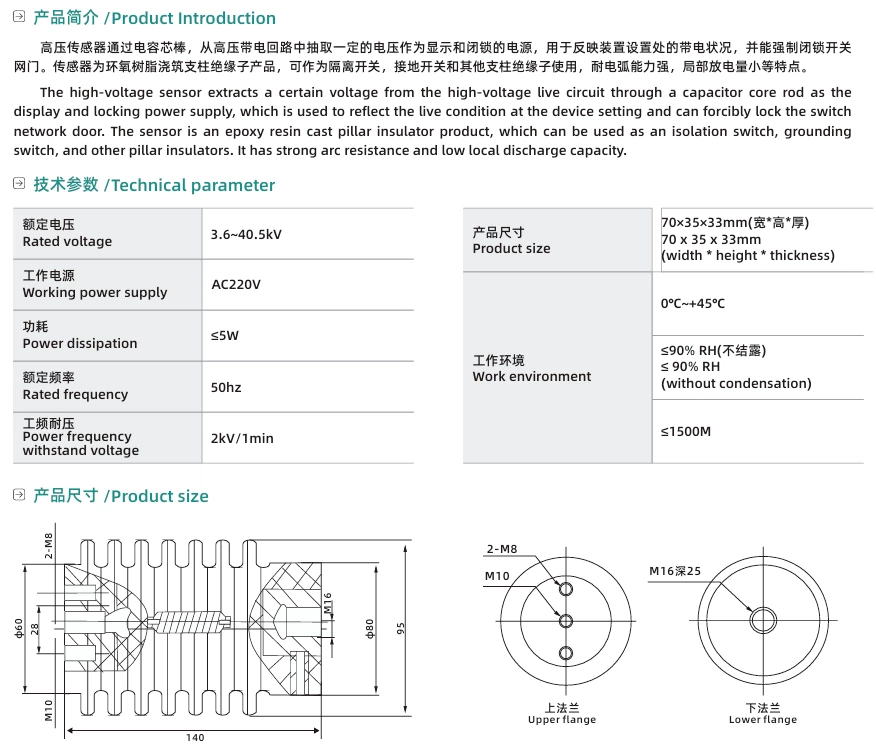

            The CG5-10Q high-voltage sensor extracts a certain voltage from the high-voltage energized circuit through a capacitive core rod, which serves as the power source for display and lockout. It is used to reflect the energized state at the device's location and can force the lockout of the switch network door. The operation of voltage indication and forced lockout is controlled by the same high-voltage signal, and the single-circuit system is mutually independent. As long as the high-voltage circuit is energized, even if both the display circuit and the lockout simultaneously fail, the electromagnetic lock remains in the locked state. Therefore, the product's anti-mislock reliability is high, and the safety level is great. The sensor is designed according to full operating conditions, with creepage distance meeting technical requirements, a novel display appearance, and all electronic components being screened and assembled meticulously. The sensor is an epoxy resin cast pillar insulator product, suitable for use as isolating switches, grounding switches, and other pillar insulators, with strong arc resistance and low partial discharge characteristics.
