Temperature and humidity monitor WSK-ZSX-II embedded digital intelligent automatic temperature and humidity controller industrial relay temperature control instrument switch single channel dual channel

summary：

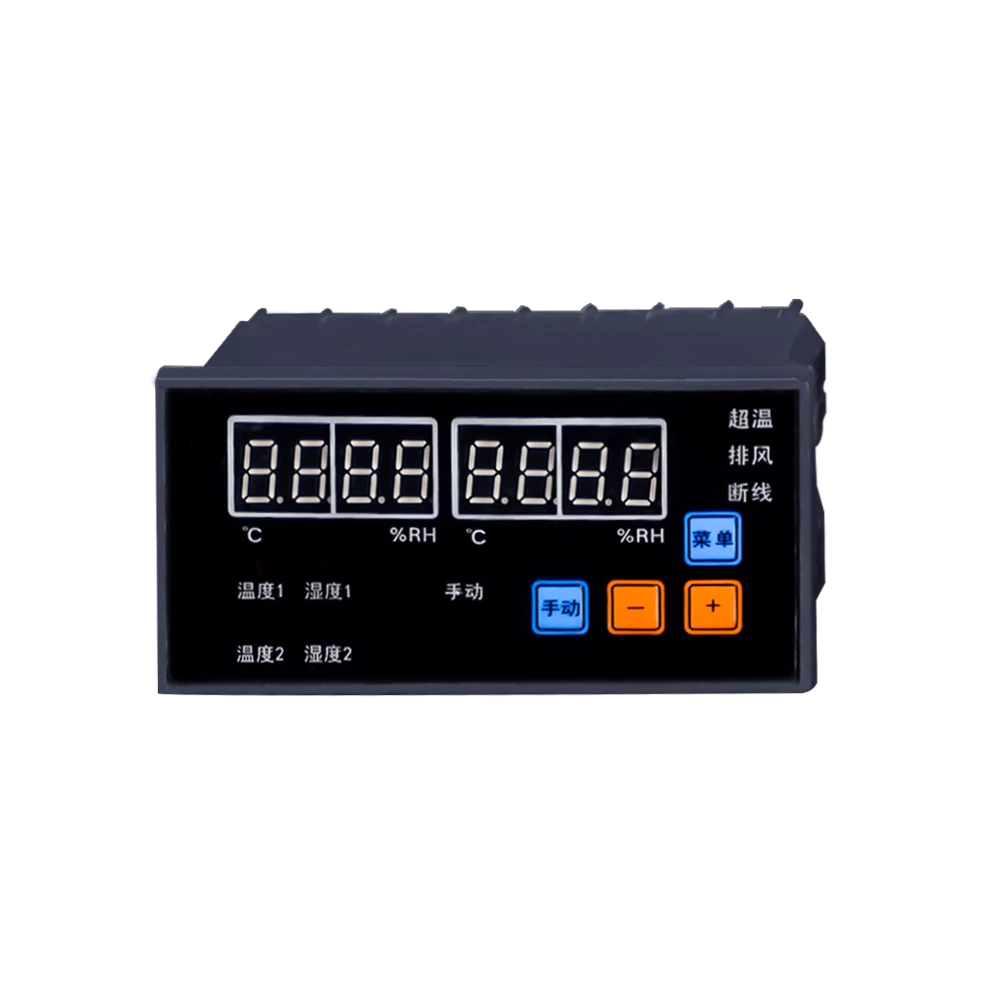

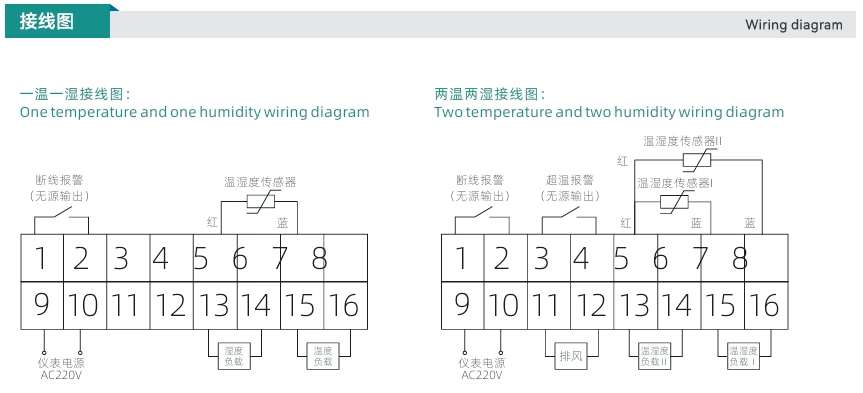

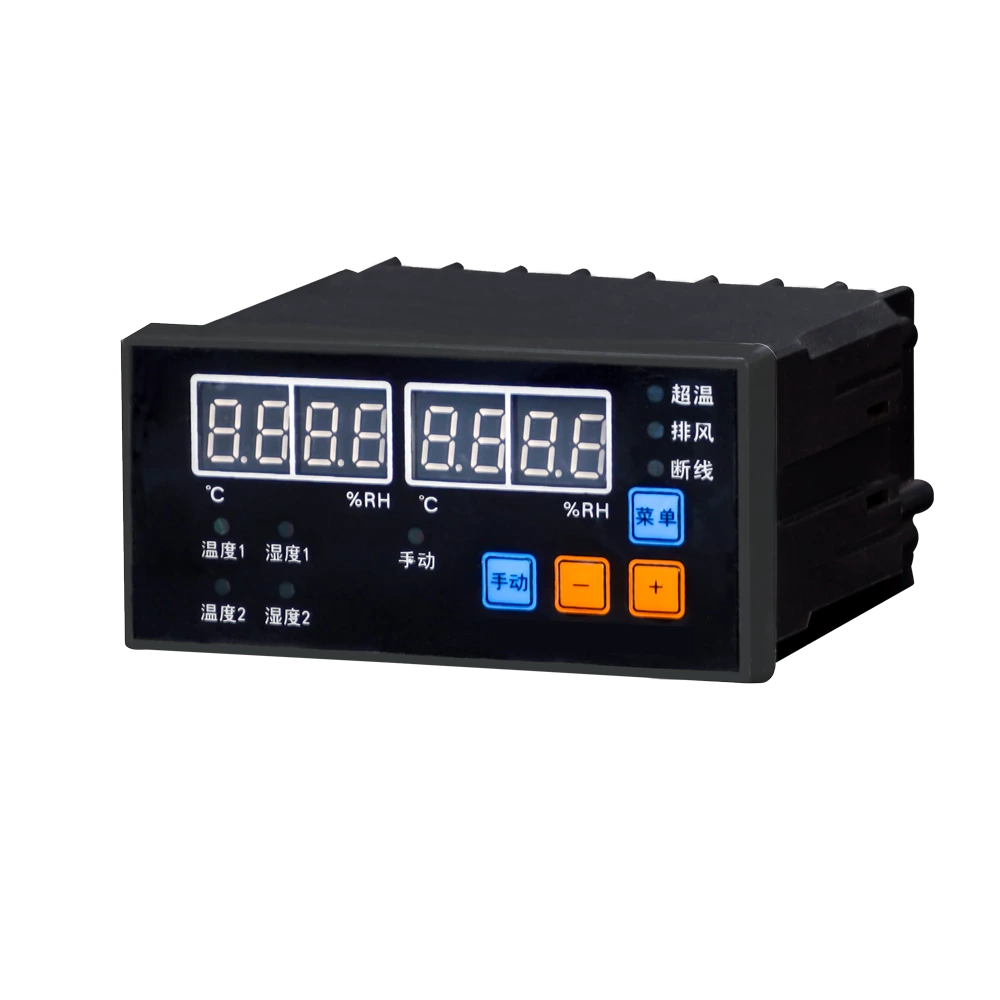

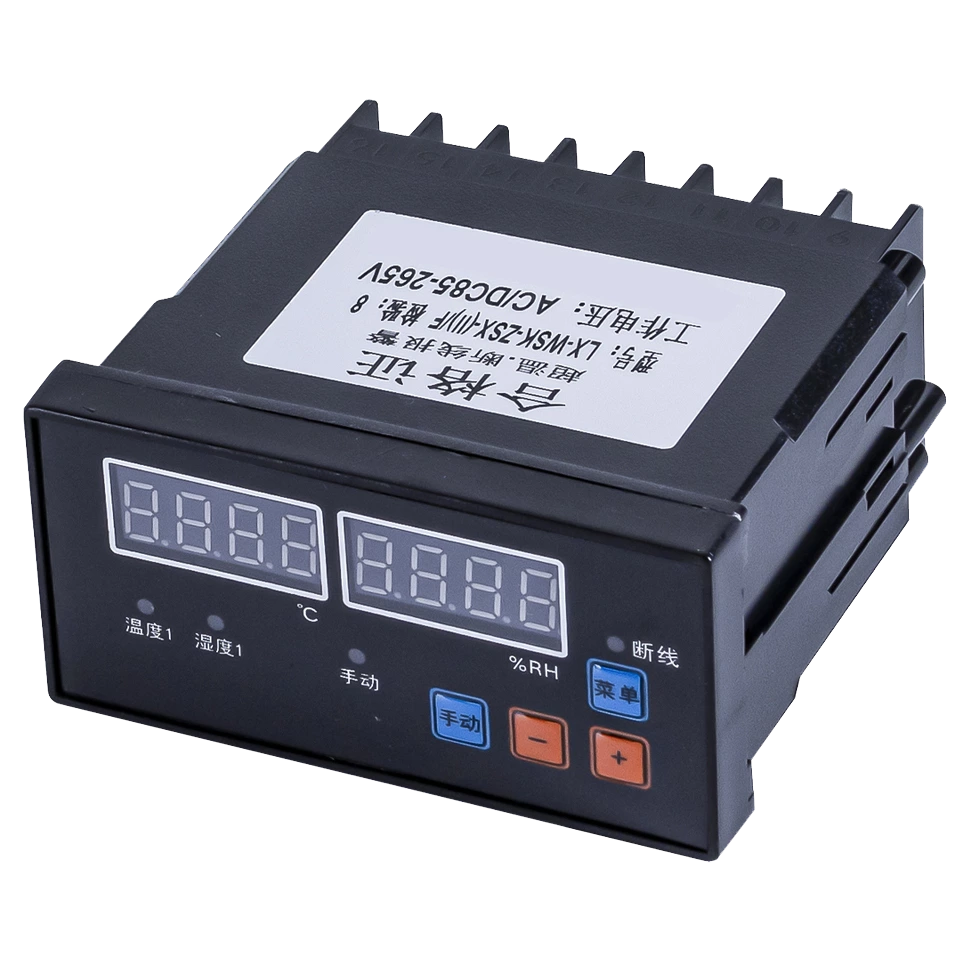

             A temperature and humidity controller is mainly used for power equipment such as outdoor terminal boxes, high and low voltage control cabinets, box-type substations, circuit breaker mechanism boxes, and instrument boxes, as well as other places that require automatic dehumidification, dew prevention, and temperature control. It can effectively prevent various accidents caused by excessively high or low humidity and temperature. The intelligent temperature and humidity controller uses a digital temperature and humidity sensor to display temperature and humidity values on a digital tube. It also has fan and heater contact points, and features heater disconnection alarm and sensor fault indication functions. The product can also be equipped with an RS485 communication interface or alarm switch output to transmit environmental temperature, humidity values, and working state parameters to the upper computer for remote monitoring, suitable for unattended substations. Users can set temperature and humidity upper and lower limits, cyclic display mode, communication parameters, etc., through buttons. The product has strong anti-interference capability, high feasibility, and complies with GB/T15309-1994.

One way condensation control, one way temperature control:

The product is divided into heating type and cooling type, which are set before leaving the factory;

The condensation setting values can be set in two levels: 88% RH and 93% RH;

The temperature setting value is set before leaving the factory and cannot be modified by the user;

When the load is disconnected, there is a disconnection alarm function (3A/AC250V);

Manual/automatic control, power on/off control.
